Indoor Rental LED Screen - Broadcast and Television Studio LED Wall Solution

Indoor Rental LED Screen - Broadcast and Television Studio LED Wall Solution

تفاصيل المنتج:
مكان المنشأ: شنتشن، الصين
اسم العلامة التجارية: KAILITE
إصدار الشهادات: IOS9001 , IOS2000,FCC,RoHS,CE,CCC
رقم الموديل: P2.97
شروط الدفع والشحن:
الحد الأدنى لكمية: 2 متر مربع
الأسعار: Negotiatable
تفاصيل التغليف: حالات الطيران لخزانة LED P2.9 500*1000 مللي متر
وقت التسليم: 22-24 يومًا
شروط الدفع: خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام
القدرة على العرض: 9000 متر مربع شهريا
اتصل
مفصلة وصف المنتج
خدمة الشعار المجانية: نعم غرض: 2.9mm
كثافة البكسل: 112896 نقطة/مربع Uasge: داخلي
معدل التحديث: 7680 هرتز بطاقة الاستلام: 1 قطعة
حياة: 100,000 ساعة وحدة الكمية: 2 * 4 قطع
وظيفة: تشغيل الفيديو/الصورة/الكلمات معيار الصمام: سمد1515
مسافة المشاهدة: 3 م-10 م المعدل: 0.0001
لون رقاقة الأنبوب: اللون الكامل جهد الإدخال: تيار متردد 110-220 فولت ± 10٪
وصول الخدمة: مؤخرة

Indoor Rental LED Screen - Broadcast and Television Studio LED Wall Solution
Product Overview

Broadcast and television production environments demand LED displays that meet specific technical requirements that consumer and commercial-grade displays cannot satisfy. The Indoor Rental LED Screen delivers the combination of high refresh rate, wide viewing angle, and color consistency that broadcast studios require.

The 1920-3840Hz refresh rate eliminates scan lines and flicker that appear on standard-refresh-rate displays when captured by professional broadcast cameras—a critical quality issue that can render an entire shoot unusable. The 160-degree viewing angle in both axes is essential for studio environments where the display is viewed from multiple positions simultaneously by camera operators, talent, and floor crew.

The P2.6 model, with its 2.604mm pixel pitch and 147,456 dots per square meter, delivers the resolution needed for 4K and HD broadcast production where cameras may shoot the LED wall at close range.

Technical Specifications
Parameter Specification
Pixel Pitch Options P2.6 / P2.97 / P3.91 / P4.81 (selectable)
Module Size 250 x 250 mm
Cabinet Size 500 x 500(1000) x 84 mm
Cabinet Material Die Casting Aluminum
Cabinet Weight 7 kg (single hand lift)
Brightness Greater than or equal to 800 nits
Refresh Rate 1920-3840 Hz
Viewing Angle H: 160 degrees; V: 160 degrees
Grey Level 12-16 bit
Ingress Protection IP43
Life Time Greater than 100,000 hours
Maintenance Front and Rear maintenance
LED Type SMD2020
Video Frame Rate Greater than or equal to 60 Hz
Failure Rate Less than 0.0002
Application Stage events, car exhibitions, rental displays, corporate events
Key Benefits
  • 1920-3840Hz refresh rate for broadcast camera compatibility – Eliminates scan lines and flicker artifacts when captured by professional broadcast cameras at any shutter speed
  • 160-degree wide viewing angle for multi-position studio environments – Camera operators, talent, and floor crew all see a consistent, accurate image regardless of position
  • P2.6 model with 147,456 dots per square meter for 4K broadcast resolution – Highest pixel density delivers detail resolution required for professional broadcast production
  • 12-16 bit grey level for smooth tonal gradation – Fine gradations in dark scenes and skin tones render without visible banding
  • IP43 rated for studio environment durability – Protection against dust and light water spray for typical studio environments
Applications
  • Broadcast studio virtual production backgrounds
  • Television news set LED walls
  • Live broadcast event production
  • Film and commercial production with LED volume stages
  • Corporate broadcast studios for internal and external communications
Why It Works

Broadcast camera compatibility is a specialized requirement that most LED display manufacturers do not design for. Standard LED displays typically have refresh rates of 60Hz or 120Hz—adequate for direct human viewing but inadequate when captured by broadcast cameras at shutter speeds of 1/50 second or faster.

At standard refresh rates, the camera's shutter captures the display's refresh cycle as visible scan lines or banding across the image, which is unacceptable in professional broadcast production. The 3840Hz maximum refresh rate on this display exceeds the requirements of professional broadcast cameras, ensuring that even at the fastest shutter speeds, the display renders as a solid, flicker-free image.

The P2.6 model with 147,456 dots per square meter is equally important for broadcast: at typical virtual production camera distances of 2-3 meters from the LED wall, a coarser pixel pitch would produce visible pixel structure that cameras resolve as distracting moire patterns.

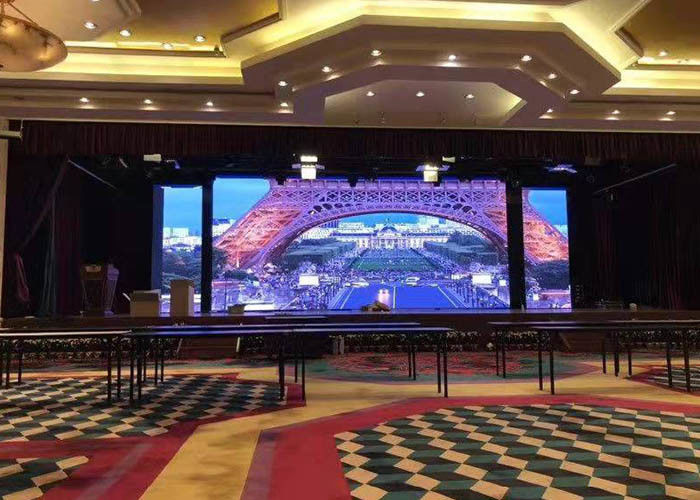

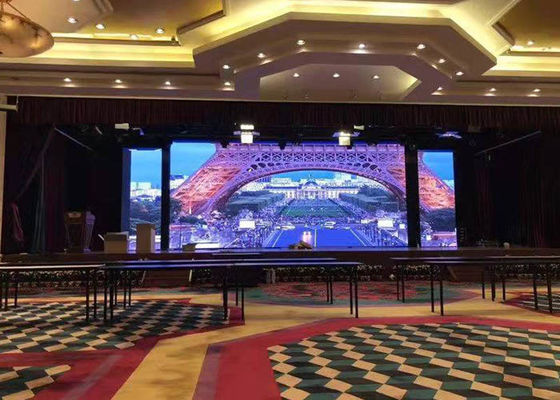

Indoor Rental LED Screen - Broadcast and Television Studio LED Wall Solution 0
After-sales Service
  • Your inquiry about our products or pricing will be replied within 24 hours
  • We provide 2 years warranty and lifelong maintenance
  • Flexible delivery options to suit your needs
  • Comprehensive product range including Outdoor LED Display, LED Pharmacy Cross Display, LED Flexible Display, Indoor LED Display, LED Gas Price Signs, and Indoor/outdoor LED Signs
Frequently Asked Questions
  • Can the product be customized?
    Yes, we can customize according to your requirements. We arrange sampling first, confirm details with you, then proceed with production.
  • Can I place a sample order to test first?
    Yes, we will create a sample list according to your needs.
  • How to install LED displays?
    We provide installation manuals and video instructions. Technical drawings are also available upon request.
  • How to proceed with an order for LED Screen?
    1. Share your requirements or application needs
    2. We provide quotation based on your requirements
    3. Customer confirms design document and places deposit
    4. We arrange production
