مكان المنشأ: | شينزين الصين |
اسم العلامة التجارية: | KAILITE |
إصدار الشهادات: | CE RoHS UL FCC CCC ISO9001 |
رقم الموديل: | P1.25 GOB |
الحد الأدنى لكمية: | 2 مجموعة |
---|---|
الأسعار: | قابل للتفاوض |
تفاصيل التغليف: | حالة خشبية أو حالة الرحلة |
وقت التسليم: | حوالي 22-24 يومًا في المتوسط |
شروط الدفع: | T / T ، L / C ، ويسترن يونيون ، MoneyGram ، D / A ، D / P |
القدرة على العرض: | 8000 متر مربع شهريا |
اسم المنتج: | P1.25 شاشة LED منشور GOB | حجم جزء الشاشة: | 640mm (W)*1920mm (H) |
---|---|---|---|
حجم مطوي: | 640*480mm (لا تشمل القاعدة) | طريقة التحكم: | wifi ، كابل الشبكة |
مواد الإطار: | الألومنيوم | طريقة الصيانة: | أمامي/مغناطيسي |
معدل التحديث: | 3840 هرتز | الجهد المدخل: | 100-220V AC |

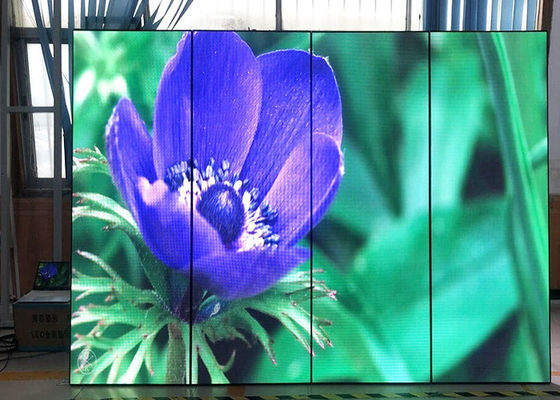

Folding Poster LED Screen 60cm Height Convenient Small Space Light Weight
Quick details of Folding Poster LED Screen
1, Module size: 320*160mm
2, Avaliable pixel pitch: 1.25-2.5mm
3, Panel Technology: SMD/GOB
4, LED Type: SMD1010/SMD1515/SMD2020
5, Module Connection: Hard connection(wireless)
Specification of products(P1.86 P2 P2.5)
Item | P1.25 | P1.86 | P2 | P2.5 |
Pixel pitch | 1.25mm | 1.86mm | 2mm | 2.5mm |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 256*128 | 172×86 | 160×80 | 128×64 |
Physical density | 640000 dots/㎡ | 289050 dots/㎡ | 250000 dots/㎡ | 160000 dots/㎡ |
LED type | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
Cabinet size | 640*1920*49mm | 640*1920*49mm | 640*1920*49mm | 640*1920*49mm |
Maintenance way | Front | Front | Front | Front |
Best viewing distance | ≥1.2m | ≥1.8m | ≥2m | ≥2.5m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/60 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | over 3840Hz | over 3840Hz | over 3840Hz | over 3840Hz |
Brightness | 600-800nits | 600-800nits | 600-800nits | 600-800nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP40 | IP40 | IP40 | IP40 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of Folding Poster LED Display

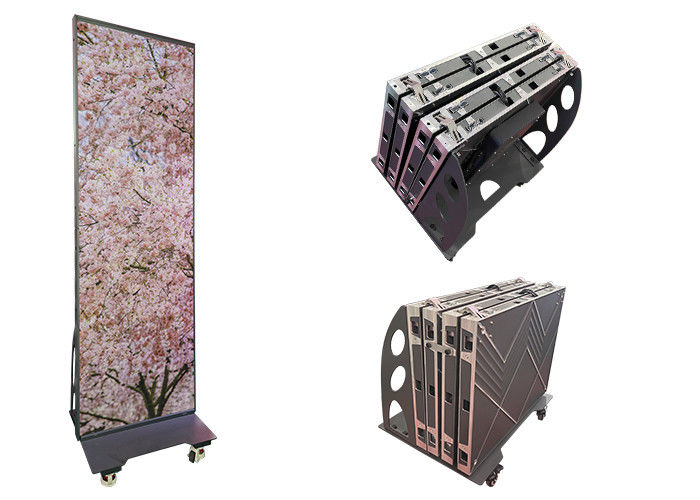

1. Unique folding design
2. Aluminum Frame, light weight
3. Quick left and right splicing
4. Main body 47mm thickness

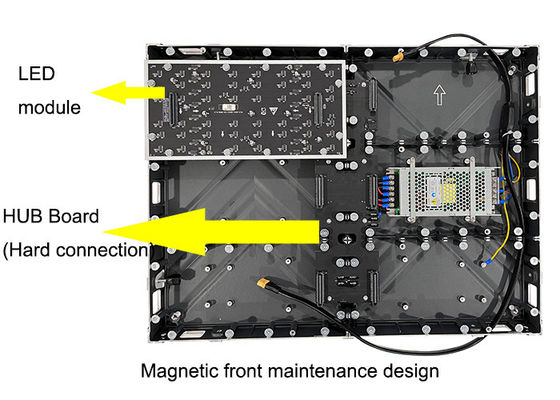

5. Magnetic module, easy to maintain
Applications of Folding Poster LED Display
1. Commercial places: shopping malls, shops
2. Transportation hubs: airports, train stations, subway stations
3. Cultural and entertainment places: theaters, cinemas, KTV
4. Financial institutions: banks, stock exchanges
5. Office places: office buildings, company offices
Cases
Advantages:
1. Movable, easy to place.
2. Occupies less space, saves shipping costs.
3. Easy to maintain and simple after-sales service.
4. The control system is integrated for easy operation.
5. High-definition display.
After-sell service:
1) Providing controller and software manual, to help customer master all kinds of functions.
2) Free remote control debuggine service if you need.
3) Repair of damaged modules.
4) Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again.
5) Warranty service.
FAQ:
1. Is the product customizable?
Yes, the standard product screen size is 640*1920mm, but we can change the design according to customer needs.
2. Is it okay to print my logo on your product?
Yes that's okay for us, we provide free printing service
3. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.
4. What’s your control system?
Mostly use Novastar controller, but there are other alternative controller, depending on the customer.
5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
